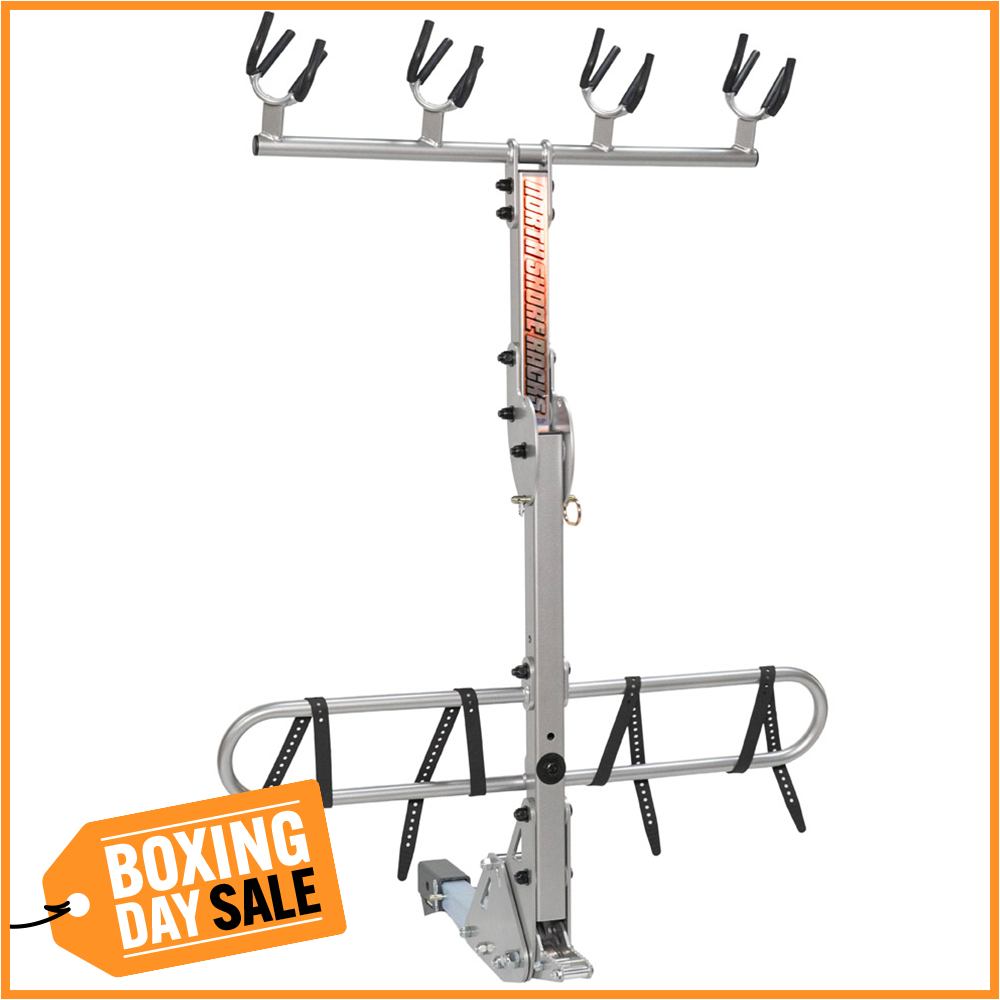

NSR4 Gradus

Introducing the NSR4 Gradus, our latest generation of racks now packed with new features from top to bottom. Featuring our proven 3-Axis Cradle Design making it even easier to load for all mountain bike styles, including modern DH and E-bikes. A simpler, solid design which doesn’t put stress on your fork internals or cause unwanted suspension play. Our new Voile Fast Strap system secures your rear wheels in the blink of an eye without any guess work. Your choice of Summit Silver or Double Black to suit your style. And lastly, our new Pedal-Actuated Base steals the show; adjusting the angle and layback of your rack- it’s almost too easy. All this while still being the most adjustable and compact vertical rack on the market offering height, setback, tilt angle and now 2 U-bar wheelbase settings to work with the many combinations of vehicles and bikes. When not out on the trail, it conveniently folds in half, for a clean look with full access to the rear of your vehicle and no need to worry about height restrictions.

• Available in Summit Silver or Double Black powder coating
• New mechanical foot pedal to easily adjust the angle on the fly
• Increased spacing between bikes for easier loading and e-bike compatibility
• Updated Voile Fast Straps for quicker, more secure attachment
• Improved cradle design for bikes with oversized frames (DH and E-mountain bikes)
• Quick loading
• Folds in half when not in use
• 100% locally made using North American steel
• Adjustable in height, setback, angle and U-bar position (fits almost any vehicle including those with rear mounted spares)

• Rack weight: 65lbs
• Maximum bicycle weight: 60lbs per cradle
• Max carrying capacity: 200lb (payload)
• For mountain bikes (not intended for road bikes, see adaptor {link})
• Includes a heavy duty lockable anti-rattle hitch pin (compatible with most ¼” shackle padlocks)
• Requires a 2” hitch receiver
